Flat Metal Roof Leaking Issues Explained

Recognising and Addressing Typical Challenges Faced by Flat Roofs in Central Coast Dwellings

Though flat roofs may not dominate the roofing scene in Australia, their adoption is increasingly favoured by both residential and commercial properties. These roofing styles are frequently seen on patios, carports, walkways, and in situations necessitating low-pitch roofing solutions. In instances where the slope is minimal, flat roofs may also be described as “skillion roofs.”

While flat roofs offer a range of benefits, they are accompanied by distinct challenges that homeowners need to understand. It is crucial to be aware of the common issues associated with flat roofing systems and to implement effective strategies to mitigate these problems, particularly in the Central Coast. The coastal climate, coupled with significant rainfall and salt-laden air, can exacerbate roofing difficulties.

What Are the Main Reasons Behind the Increasing Popularity of Flat Roofs Among Homeowners?

The growing preference for flat roofs in both residential and commercial construction can be attributed to several compelling factors:

• They are quicker and easier to install, facilitating faster project completion timelines
• They offer enhanced maintenance access, making routine inspections and repairs more straightforward
• They provide ideal surfaces for solar panel installations, thereby boosting energy efficiency

The paramount concern associated with flat roofs revolves around managing water drainage. Water poses the greatest threat to your roof. When planning a new roof installation or refurbishing an existing one, it is vital to consider numerous factors, particularly rainfall patterns, which can vary dramatically across different regions of Australia.

What Are the Primary Drainage Issues Associated with Flat Roofs?

Unlike pitched roofs that facilitate quick rainwater runoff into gutters, flat roofs possess a limited slope. This design characteristic can lead to water pooling that persists for extended durations. If water is not efficiently channelled off the roof, it may lead to:

• Surface discolouration and deterioration of roofing materials
• Gradual structural weakening of roofing components
• The proliferation of mould and mildew, which can pose health risks
• Leaks that may penetrate the interior of the building

Addressing these issues effectively requires robust roof plumbing and a thoughtful design approach that takes into account the unique challenges posed by flat roofs.

How to Enhance Flat Roof Designs for Optimal Drainage Performance

Prior to installation, a qualified roofing contractor will evaluate several critical elements that impact drainage efficiency:

• Local rainfall intensity and prevailing weather conditions
• Total roof area and exact dimensions
• Gutter layouts and effective drainage outlets
• Specifications for downpipe dimensions
• Options for overflow prevention to manage excess water
• Considerations regarding roof pitch aimed at improving drainage

Most roofing manufacturers advocate for a minimum slope of 5° for low-pitched roofs. Roofs with a slope below this threshold can undermine waterproofing efforts and may risk invalidating product warranties, leading to potentially costly repairs.

Standard corrugated roofing sheets, which are ideal for pitched roofs, are typically unsuitable for very low-pitch applications. For flat roofs, it is advisable to use specific roofing profiles designed for efficient water shedding, ensuring long-term performance and reliability.

What Are the Optimal Metal Roofing Profiles for Low-Pitch and Flat Roof Installations?

Two of the most highly recommended roofing profiles for low-pitch and flat roofs are:

Trimdek: This adaptable profile is suitable for both roofing and wall applications. Featuring a 28mm rib height and a specially designed capillary groove, it enhances water tightness even at a minimal pitch of 2°.

Kliplok: This innovative clipped roofing profile employs hidden clips instead of screws to secure sheets, effectively preventing water ingress through screw penetrations, making it an excellent option for low-pitch installations.

Choosing the correct roofing profile according to your roof pitch and local rainfall conditions is essential for ensuring the enduring performance and reliability of your roofing system.

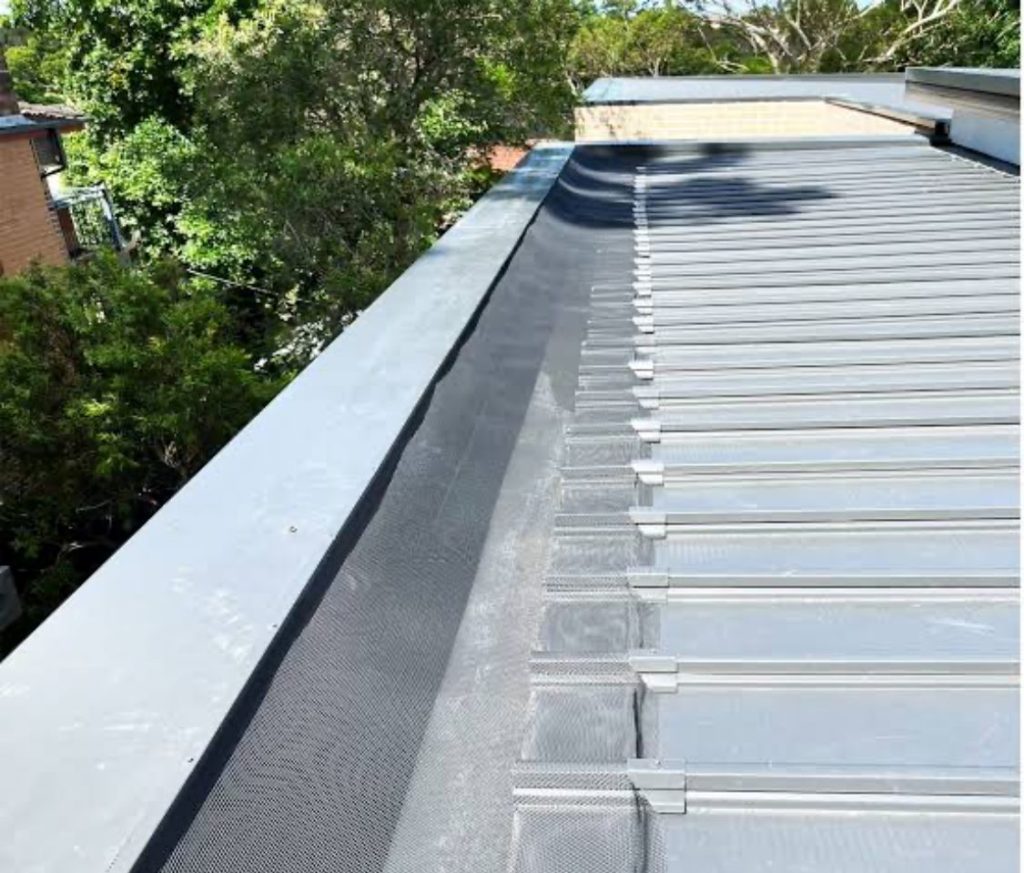

How to Efficiently Manage Box Gutters and Drainage for Flat Roofs

On flat roofs, Box gutters are frequently utilised to connect roof panels to drainage outlets. Since box gutters are positioned below the roof plane, they must be meticulously designed and installed to prevent blockages and water backflow issues.

Common difficulties associated with box gutters include:

• Accumulation of debris from surrounding trees and foliage
• Improper slope or fall that obstructs water flow
• Overflowing back into the roof structure, leading to potential leaks
• Blocked downpipes that hinder effective drainage

Addressing these challenges begins with ensuring proper gutter design and committing to regular maintenance to guarantee optimal functionality.

What Key Considerations Should You Keep in Mind When Choosing Guttering for Your Flat Roof?

Conventional gutters may not adequately manage the water flow demands of flat roofs. It is often necessary to install guttering specifically designed to cope with higher water capacities. Next, we will explore various drainage and overflow solutions that can be seamlessly integrated into your flat metal roof design.

• Facilitate rapid water removal during heavy rainfall events
• Effectively sweep debris away with enhanced flow capabilities
• Provide homeowners with easier cleaning and maintenance solutions

Our top recommendation for gutters includes self-cleaning designs, which are ideal for flat metal roofs while also offering an aesthetically pleasing appearance!

We strongly recommend a half-round gutter because of its superior water-carrying capacity, which allows for faster drainage. This design effectively clears away silt and sludge accumulations with each rainfall, ensuring a cleaner system over time.

To achieve optimal performance on flat roofs, gutters should be appropriately sized according to local rainfall patterns and linked to sufficiently sized downpipes (for instance, 100mm × 75mm) that can manage substantial water volumes. In areas with abundant trees, installing leaf diverters or guards can significantly mitigate blockage issues.

How Do Flashings Prevent Water Ingress at Roof Joints?

Flashings are vital components that are installed at joints where roof sheets intersect with walls or other surfaces, including around skylights, chimneys, and internal corners. On flat roofs, ensuring proper flashing installation is imperative, as water can pool around these joints if they are not adequately sealed.

To effectively prevent water entry:

• Flashings must be meticulously shaped to conform to the roof profiles
• Waterproof sealants should be applied at all joints to ensure tight seals
• Extra diligence is required at corners and seams where water may collect

By guaranteeing that flashings and sealants are installed correctly, you can achieve a water-tight roof, even during intense rainfall. Our team takes additional precautions during installation and utilises high-quality waterproof sealant to prevent water from pooling in these susceptible areas.

Why Is Consistent Maintenance Essential for the Longevity of Flat Roof Systems?

Flat roof systems, particularly those connected to box gutters, require regular inspections and maintenance to ensure their ongoing effectiveness. This maintenance should include:

• Clearing debris from gutters and box gutters to maintain clear drainage pathways
• Examining downpipes for any signs of potential blockages
• Inspecting roof surfaces for minor cracks or areas where water may accumulate
• Re-sealing flashings when necessary to uphold waterproof integrity

Conducting routine maintenance checks can prevent the need for more extensive repair work in the future, thereby extending the lifespan of your roofing system.

Discover the Advantages of Properly Installed Flat Roofs

When designed and installed by skilled metal roofing professionals, flat roofs provide:

• A modern, streamlined architectural aesthetic that enhances property value
• Optimised space for patios, decks, or utility services, maximising usability
• Convenient access for maintenance or solar panel installations, simplifying upkeep

Moreover, flat roofs can seamlessly integrate with existing pitched roof structures when drainage and detailing are managed appropriately, enhancing the overall functionality and visual appeal of the building.

How to Ensure You Receive the Ideal Flat Roof Installation on the Central Coast

A well-engineered and expertly installed flat metal roof can deliver both functionality and long-lasting durability within the coastal environment. Whether you are embarking on a new construction project, extending a patio, or adding a carport, selecting the correct roofing system and drainage design is vital for optimal performance and durability.

Contact AWS Roofing today to request a quote and secure your installation date. With another rainy summer approaching, now is the perfect time to address any roofing issues and prevent more significant problems in the future.

Flat Roof Frequently Asked Questions: Do Flat Roofs Experience Greater Problems Compared to Pitched Roofs?

Flat roofs can indeed face more drainage challenges if they are not designed correctly. Without an appropriate slope, water may accumulate or leak into the building structure. However, when constructed with the right pitch, roofing profile, box gutter design, and flashing techniques, flat roofs can be just as resilient as pitched roofs.

What is the Ideal Roof Pitch for a Flat or Low-Slope Roof?

Most roofing manufacturers recommend a minimum pitch of 5 degrees for metal flat roofs. Profiles such as Trimdek and Kliplok can function effectively at pitches as low as 2 degrees when installed correctly and sealed against water. Anything below 5 degrees necessitates careful selection of materials and detailed guttering strategies to ensure effective drainage.

Is it Viable to Install Solar Panels on a Flat Metal Roof?

Absolutely, flat metal roofs are well-suited for solar panel installations. The accessible surface simplifies the installation process and enhances safety. Typically, panels are tilted on angled mounts to optimise sun exposure and prevent water from pooling underneath, ensuring efficiency in energy production.

What Exactly Are Box Gutters and Why Are They Used on Flat Roofs?

Box gutters are internal roof gutters located beneath the roof line, often found between roof sections or along parapet walls. They are commonly utilised on flat roofs to effectively manage runoff, but they must be precisely sized and sloped to avoid blockages and overflow issues that could compromise the roof's integrity.

Do Flat Roofs Require Special Gutters or Downpipes?

Yes, flat roofs generally necessitate higher-capacity gutters and larger downpipes to facilitate effective water drainage. Half-round gutters and 100x75mm downpipes are frequently employed to improve flow and prevent water accumulation. Additionally, overflow devices and leaf diverters may be advantageous in minimising maintenance requirements.

What is the Expected Lifespan of a Flat Metal Roof?

When installed properly, equipped with suitable drainage, and maintained regularly, a flat Colorbond or Zincalume metal roof can endure for 20 to 30 years or even longer. Keeping box gutters clear and resealing flashings as needed will significantly enhance the roof's lifespan and overall performance.
