Dedicated Circuits for Heavy Tools in the Workshop

If you have a shed on a rural property and are contemplating transforming it into a fully operational workshop, prioritising the electrical layout is essential.
Utilising equipment such as a MIG welder, air compressor, and table saw on the same circuit as your home can lead to significant complications, including frequent breaker trips, flickering lights, and potentially dangerous overload situations.

This comprehensive guide delves into the key elements of establishing a well-wired workshop in the rural areas of the Mid North Coast. We will investigate crucial topics such as dedicated circuits, sub-boards, and the merits of utilising three-phase power for larger machinery. If your requirements are limited to basic power needs for your shed—like lighting and a few outlets—please consult our guide on Shed Wiring on Acreage for a more suitable starting point. This article specifically addresses workshops that necessitate substantial power.

Recognise the Significance of Dedicated Circuits in Your Workshop

Most residential properties operate multiple power points on shared circuits, which works well for low-power devices like kettles and televisions. complications arise when you attempt to use a 32-amp MIG welder alongside an air compressor simultaneously. This situation can lead to serious electrical issues.

Consider the potential consequences of connecting heavy machinery to household circuits:

• Frequent breaker trips — A welder drawing over 30 amps on a 20-amp circuit will trip the breaker immediately or, worse, cause the wiring to overheat before the breaker can react.
• Voltage drops — Long cable runs from the main board to the shed can result in voltage sag. This can lead to your tools operating at higher temperatures, reduced speeds, and deteriorating more quickly over time.
• Power interruptions in the home — Your partner may experience a power outage in the kitchen if you switch on the compressor, leading to unnecessary disputes.
• Increased fire hazards — Overloaded wiring within walls and cable runs is a leading cause of electrical fires in rural settings.

Implementing dedicated circuits effectively resolves these issues. Each heavy tool receives its own circuit, correctly sized for its power requirements, along with individual breaker protection. This ensures that nothing is shared and nothing is overloaded.

Evaluate the Power Consumption of Essential Workshop Equipment

Before your electrician can design an effective circuit layout, understanding the power requirements of your equipment is vital. Here’s a detailed overview of the typical power consumption for common workshop tools:

• MIG welder — Requires between 15A and 32A, depending on the model. Larger 240V welders tend to be at the higher end. Three-phase units have different requirements (more details to follow).
• Air compressor — Draws approximately 10A to 15A. The startup surge can be considerable—compressor motors often draw 3 to 4 times their running current for a few seconds upon starting.
• Table saw — Generally consumes 10A to 15A for a quality cabinet saw. More affordable contractor saws may require less power, but you should avoid budget options.
• Lathe (wood or metal) — Similar to table saws, these typically require between 10A and 15A, with metal lathes generally being at the higher end.
• Dust extractor — Approximately 10A for a single-phase unit. It must operate continuously while using other tools, so it should have its own circuit.
• Plasma cutter — Draws between 20A and 30A, similar to a welder, and also necessitates a dedicated circuit.

When you total the power consumption, it becomes clear that a single 20-amp circuit from the house will be inadequate. A fully equipped workshop can easily demand 80 to 100+ amps across all circuits when operating at full capacity, underscoring the need for careful planning.

Select the Appropriate Circuit Breaker Size and RCD Protection for Safety

Every circuit in your workshop must feature a breaker that corresponds to the cable size and anticipated load. Your electrician will calculate this based on your equipment, but as a general guideline:

• 15A or 20A circuits — Suitable for general power points, dust extractors, lighting circuits, and lighter tools.
• 32A circuits — Essential for welders, plasma cutters, and other heavy single-phase machinery.
• Three-phase breakers — Sized according to the specific equipment requirements (more details to follow).

RCD protection is crucial. According to AS/NZS 3000 (the Australian Wiring Rules), all power and lighting circuits must incorporate RCD (safety switch) protection. This requirement is not optional; it is a legal mandate designed to protect against the high-risk nature of workshop environments.
Concrete floors, metal tools, dust, and moisture increase the likelihood of earth faults. RCDs instantly cut power if a current leak to earth occurs, which can often mean the difference between a minor shock and a serious injury.

Typically, your electrician will implement a combination of RCDs and MCBs (miniature circuit breakers), or RCBO units that combine both functionalities. RCBOs are particularly advantageous in workshops because a fault on one circuit does not disrupt power to others, enhancing safety and reliability.

Establish a Dedicated Sub-Board to Meet Your Workshop's Electrical Demands

Instead of running multiple individual cables back to the main switchboard, installing a dedicated sub-board in your workshop is a more efficient approach. Here are the benefits:

• Shorter cable runs — A single heavy feed cable connects from the house (or a separate meter) to the workshop board, followed by shorter runs from the sub-board to each outlet. This setup reduces voltage drop and lowers cable costs.
• Simplified fault diagnosis — Each circuit is clearly labelled and easily accessible in the workshop. If a breaker trips, you won’t need to return to the house to reset it, saving time and effort.
• Future expansion — A properly sized sub-board allows for additional circuits in the future, making it straightforward to incorporate new tools as your workshop evolves.
• Isolation capability — You can switch off all workshop power from a single main switch without disrupting the house's electricity, enhancing safety during maintenance.

If your house switchboard is outdated or operating at full capacity, an upgrade may be necessary before effectively powering the workshop sub-board. Older ceramic fuse boards may not safely accommodate the increased load.

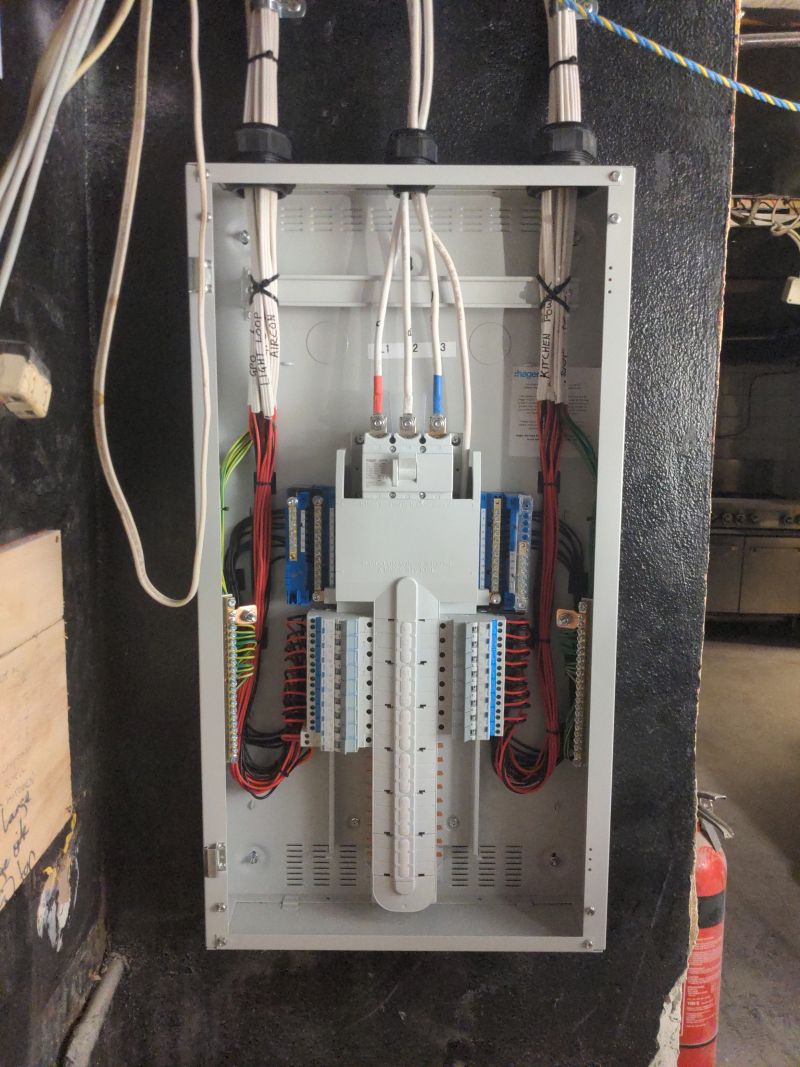

A typical workshop sub-board configuration includes a main switch, individual RCBOs for each circuit, a dedicated lighting circuit, and a surge protection device. We will size the incoming feed cable based on the total expected load plus a buffer for future enhancements, ensuring optimal performance and safety.

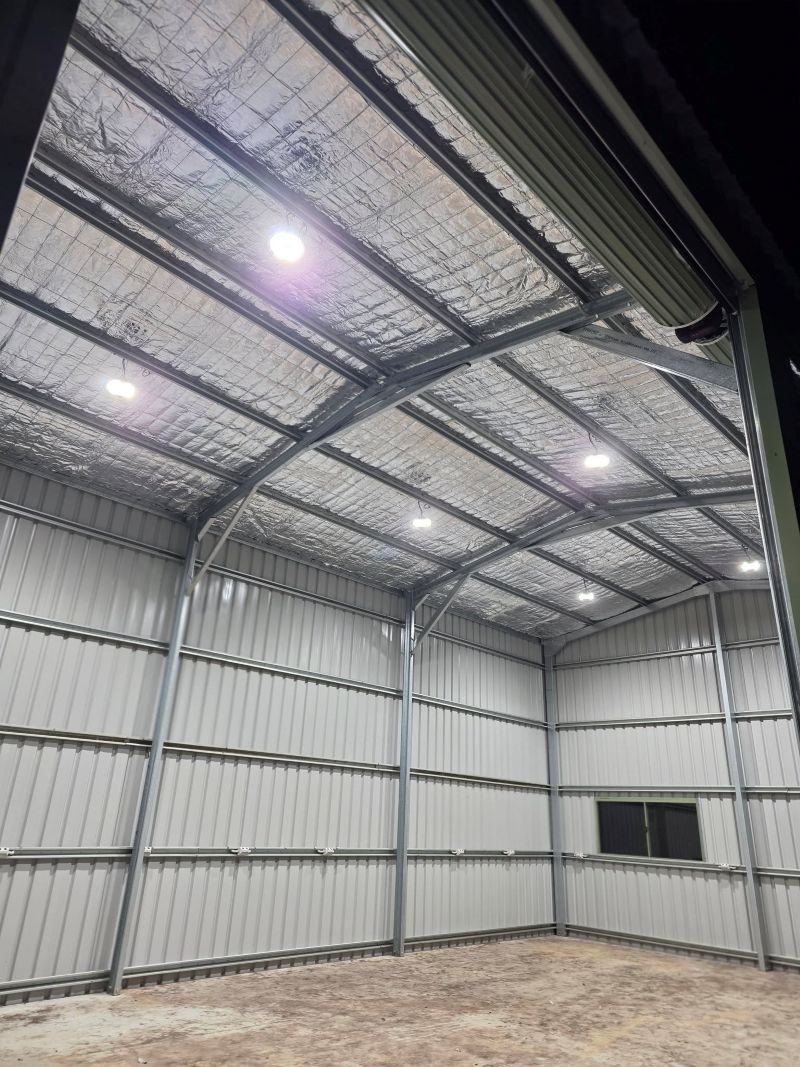

Ensure Your Workshop Is Well-Lit for Safety and Efficiency

Sufficient lighting is vital for safety in your workshop. You must clearly see your work, especially when handling sharp blades and hot materials. Here are some critical lighting considerations:

• High-lumen LED battens — LED panels or battens provide bright, consistent illumination throughout the space. Aim for a minimum of 500 lux at bench height to ensure visibility.
• Dust-proof fittings — Standard lights can become obstructed by sawdust and metal shavings. Opt for IP-rated fittings that are resistant to dust and moisture for durability and safety.
• Task lighting at workstations — While overhead lighting illuminates the general area, focused lighting at the workbench, lathe, and drill press is crucial for precision work and safety.
• Separate lighting circuit — Lighting should operate on its own circuit, ensuring that you still have illumination if a power circuit trips. Being left in darkness next to a running table saw poses a substantial safety risk.

We have extensive experience with lighting layouts in commercial spaces. Our team can assist you in creating a workshop lighting plan that significantly enhances your working environment and safety.

Plan for Effective Ventilation and Dust Extraction Circuits

When engaging in activities such as woodworking or welding, ensuring adequate ventilation is as crucial as having sufficient power. Dust extraction systems and exhaust fans require their own dedicated circuits because:

• Continuous operation — Your dust extractor must run whenever you’re cutting. It cannot share a circuit with the tool it serves, as this compromises efficiency and safety.
• Motor startup loads — Dust extraction fans and collectors experience significant startup surges, similar to compressors, which necessitate dedicated circuits.
• Interlocked switching — In an optimally designed workshop, the dust extractor can be wired to activate automatically when specific tools are powered on. This requires careful circuit design to ensure functionality.

Plan for at least one dedicated 15A circuit for dust extraction and another for general ventilation. If you’re utilising a cyclone-style dust collection system, it might require a 20A circuit based on motor specifications, ensuring efficiency and effectiveness in maintaining air quality.

Utilise Three-Phase Power for Enhanced Efficiency with Heavy Equipment

When engaging in intensive metalwork or operating large compressors (5HP+) or commercial-grade woodworking machinery, single-phase power may reach its limits. Three-phase power offers several advantages:

• Increased power capacity — Three-phase motors are more efficient and provide greater power without the excessive startup surges associated with single-phase motors.
• Support for larger welders and plasma cutters — Industrial MIG/TIG welders and CNC plasma tables typically function on three-phase power for optimal performance.
• Smoother operation — Three-phase motors operate more smoothly and run cooler, extending the lifespan of your tools and machinery.

Accessing three-phase power in rural areas on the Mid North Coast depends on availability at the street level. Some properties already have a three-phase supply, while others may require a phase converter or a new connection from Essential Energy.
For further details, please consult our guide on Do I Need Three-Phase Power on My Property?

If three-phase power is available, your workshop will require the installation of a three-phase switchboard with appropriately rated breakers and an effective earthing system to ensure safety and reliability.

Implement Surge Protection to Safeguard Your Tools

Tools equipped with electronic controls, variable frequency drives (VFDs), digital displays, and inverter welders are vulnerable to voltage spikes. Notably, your workshop generates surges each time a large motor starts or stops. Coupled with the voltage instabilities often found in rural power lines, your valuable equipment is at risk.

Installing a surge protection device (SPD) at the sub-board can intercept voltage spikes before they impact your tools. This is a cost-effective measure compared to replacing the electronic components of a $3,000 welder or a CNC controller, thereby preserving your investment.

If your property is susceptible to storms (which is common on the Mid North Coast), we recommend adding surge protection at the main switchboard to defend against lightning-induced surges that could damage your equipment.

For properties that rely on a generator for backup power, incorporating a generator changeover switch ensures seamless transitions between mains power and generator supply without risking back-feeding or harming connected equipment, providing peace of mind during power outages.

Consider Additional Features for Your Workshop Wiring

Here are several more elements to include in your workshop wiring from the outset:

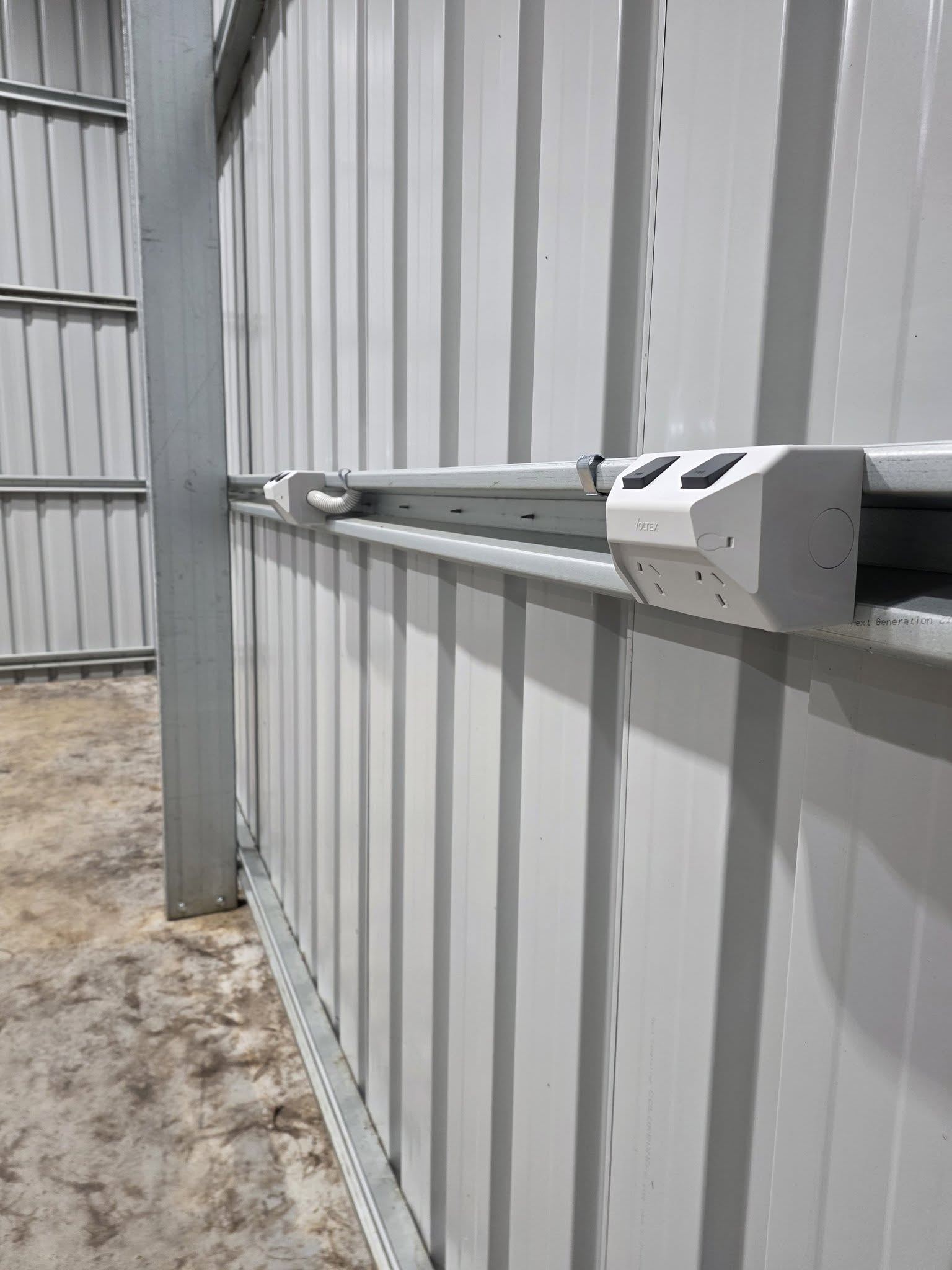

• Ample power points — Install more power points and switches than you anticipate needing. Use weatherproof GPOs if the workshop is open-sided, ensuring longevity. Consider double power points at every bench and outlets at key machinery locations to improve accessibility.
• Data and communications — If you need internet access for streaming music, operating a CNC machine, or monitoring security cameras, plan for data and TV wiring concurrently with the electrical setup. Running cables during the initial fit-out is significantly easier than after the walls are finished, preventing future complications.
• External lighting — Include floodlights outside the workshop to facilitate access during early mornings and late evenings, especially in rural areas lacking street lighting, enhancing safety.
• EV or equipment charging — If you’re using electric equipment (battery-powered tools, an electric vehicle, or an electric quad bike), implement a dedicated charging circuit to prevent overloads on general outlets, ensuring efficient operation of all devices.

Accurately Estimate the Cost of Your Workshop Electrical Installation

Cost estimates will vary based on the size of the workshop, the number of circuits required, and whether three-phase power is necessary. As a rough guideline for the Mid North Coast:

• Basic single-phase setup (sub-board, 4–6 circuits, lighting) — Starting from $5,000, providing foundational electrical support.
• Complete dedicated sub-board (8–12 circuits, multiple heavy tool circuits, dust extraction, comprehensive lighting design) — Starting from $10,000, ensuring ample capacity for serious workshop needs.
• Three-phase workshop build (three-phase supply, dedicated board, heavy equipment circuits, complete fit-out) — Starting from $15,000+, accommodating extensive power requirements.

These figures represent starting points. Complex layouts, lengthy cable runs from the mains, or the necessity for upgrades from Essential Energy will increase costs. We provide transparent quotes based on your specific workshop and equipment needs—no hidden fees, ensuring you know precisely what to expect.

Important Reminder: All Electrical Work Must Be Conducted by Licensed Professionals

This is a crucial point. In New South Wales, all electrical wiring work must be conducted by a licensed electrician. This encompasses installing new circuits, sub-boards, power points, and connecting equipment. There is no DIY exemption for electrical work, even on your own property, to ensure safety and compliance.

Hack-It Electrical Solutions holds NSW Electrical Contractor Licence #230609C. We operate throughout Bellingen, Coffs Harbour, Sawtell, Nambucca Heads, Woolgoolga, Urunga, Dorrigo, Valla Beach, and Toormina, ensuring quality service.

Engaging in unlicensed electrical work can void your insurance, create significant safety hazards, and lead to fines. If someone offers to do the work cheaply without a licence, it’s not a saving—it’s a risk that can have serious repercussions.

Find Answers to Your Common Questions About Workshop Electrical Requirements

Can I Use My Welder with a Standard Power Point?

Small stick welders (up to around 140A output) can be used with a standard 10A or 15A power point. Any larger units necessitate a dedicated circuit. A MIG welder with a capacity of 200A or more connected to a 10-amp GPO will trip the breaker immediately—or potentially cause the wiring to overheat if the breaker is faulty. If you weld regularly, it’s essential to have a dedicated 32A circuit installed to ensure safe operation.

How Many Circuits Are Typically Needed in a Workshop?

The number of circuits required depends on your tools, but a well-equipped workshop generally needs a minimum of 8 to 12 circuits. This includes dedicated circuits for each heavy tool (welder, compressor, plasma cutter), general power point circuits, dust extraction, lighting, as well as a couple of spares for future additions. We tailor the design based on your specific equipment list, ensuring you have everything you need.

Is Three-Phase Power Necessary for a Home Workshop?

Not necessarily. Most home workshops function adequately on single-phase power with dedicated circuits. Three-phase power is only necessary if you are using commercial-grade equipment, such as large compressors (5HP+), three-phase welders, or CNC machines. Consult our comprehensive guide on Do I Need Three-Phase Power on My Property? to determine if it meets your requirements, ensuring you make an informed decision.

Can My Existing Switchboard Support a Workshop?

It’s possible. If your house switchboard is modern and has spare capacity, we can often connect a workshop sub-board to it. If it consists of an outdated ceramic fuse board or is fully loaded, an upgrade will be necessary before proceeding. We will assess this during the quoting process to ensure everything aligns with current standards.

What Is the Typical Duration for a Workshop Electrical Fit-Out?

A basic single-phase setup can usually be completed within 1 to 2 days. A full fit-out encompassing multiple heavy circuits, three-phase power, and comprehensive lighting generally takes 3 to 5 days, depending on the complexity and cable run distances. We will provide a timeline along with your quote, ensuring you know what to expect.

Ensure Your Workshop Is Properly Wired for Safety and Efficiency

If you are establishing a workshop on your property and want to guarantee it is done correctly from the outset, reach out to us. We will visit your site, assess your space and equipment list, and develop a plan that meets your power requirements without compromising safety or quality, ensuring a successful workshop setup.

Contact Hack-It Electrical Solutions at 0402 079 803 or reach out to us online to arrange a detailed quote and consultation.

We are your local electricians in Bellingen, proudly serving the entire Mid North Coast from Nambucca Heads to Woolgoolga and up to Dorrigo.
