French Drain Solutions for Effective Runoff Management in Shellharbour

Addressing Water Ingress Challenges in Shellharbour

A homeowner in Shellharbour encountered a serious and worsening problem with water ingress. Rainwater from two adjacent properties, positioned at a higher elevation, started to flow into the yard and seep beneath the foundation of the house. This unwelcome intrusion caused damage to the flooring, promoted rising damp, and resulted in mould growth within the property, jeopardising the integrity of recent renovations.

How Do You Locate the Source of Water Ingress?

The issue originated from both surface runoff and subsurface water flowing downhill from the rear and side yards of neighbouring properties. In the absence of a robust drainage system to intercept this influx, the water was forced to flow beneath the house.

Developing an Effective Drainage Strategy

CS Plumbing designed and implemented a gravity-fed French drain system specifically tailored to capture and redirect water before it could reach the home’s foundation.

The project incorporated several vital components:

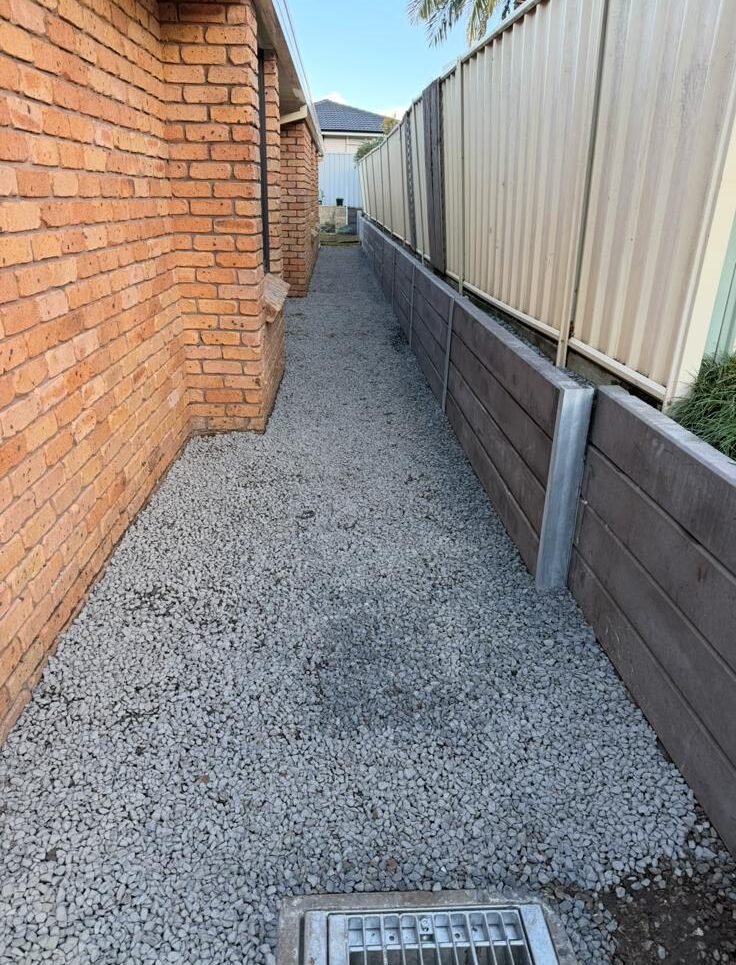

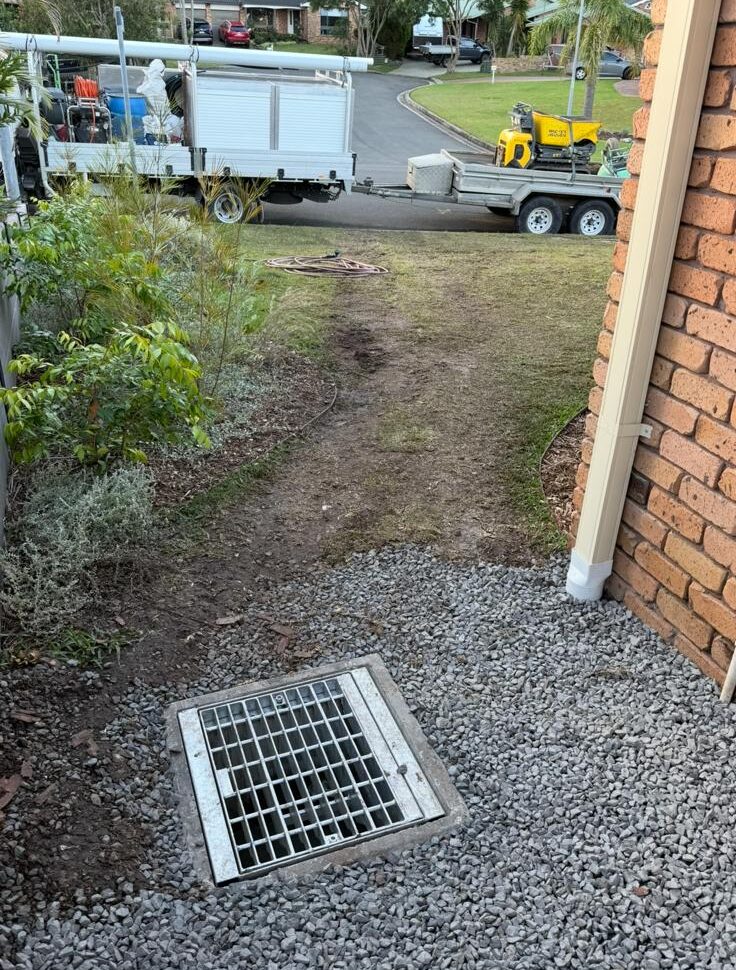

A French drain system meticulously crafted to gather surface and subsurface water from neighbouring properties, directing it through gravity to a concrete pit.
A 100mm PVC pipe extending from the pit to the curb, featuring strategically drilled holes in the curb to ensure efficient discharge.
Three new, larger-diameter Colorbond metal downpipes replacing the original smaller pipes, linked to new 100mm PVC piping leading to the curb.
A retaining wall system constructed along the boundary, using concrete sleepers and galvanised steel posts, with auger holes drilled using an excavator to create a sturdy barrier that holds back the adjacent yard.
Efficient on-site soil removal, aided by a dumper for streamlined site management.

What Measures Can You Implement for Effective Water Management?

The newly established drainage system now efficiently captures both surface and subsurface water at the property boundary, ensuring it is diverted away from the home. This solution offers the homeowner a durable, low-maintenance option that protects their foundation, flooring, and the investment made in renovations.
