Shed Wiring Tips for Electricians in Rural Areas

If you own a shed located on acreage and find the management of extension cords from your home to be cumbersome, it is essential to ensure that your shed is wired correctly. Whether your requirements include a simple storage shed that needs only a light and a power point, or a fully functional workshop that utilises welders and compressors, adhering to the proper procedures is critically important. In NSW, the only legal and safe way to achieve this is by hiring a licensed electrician.

This comprehensive guide outlines the necessary steps to supply electricity to your shed, detailing what your electrician will require for the installation process and providing an overview of the associated costs in the Mid North Coast.

Maximise Your Shed’s Power Supply: Essential Insights into Cable Runs

The foremost consideration for any shed wiring venture is the efficient transmission of power from your primary switchboard to the shed. On larger properties, this distance can extend to 30, 50, or even over 100 metres. The greater the distance, the larger the diameter of the cable needed to effectively manage voltage drop and ensure reliable power delivery.

When planning cable runs, two primary options are available:

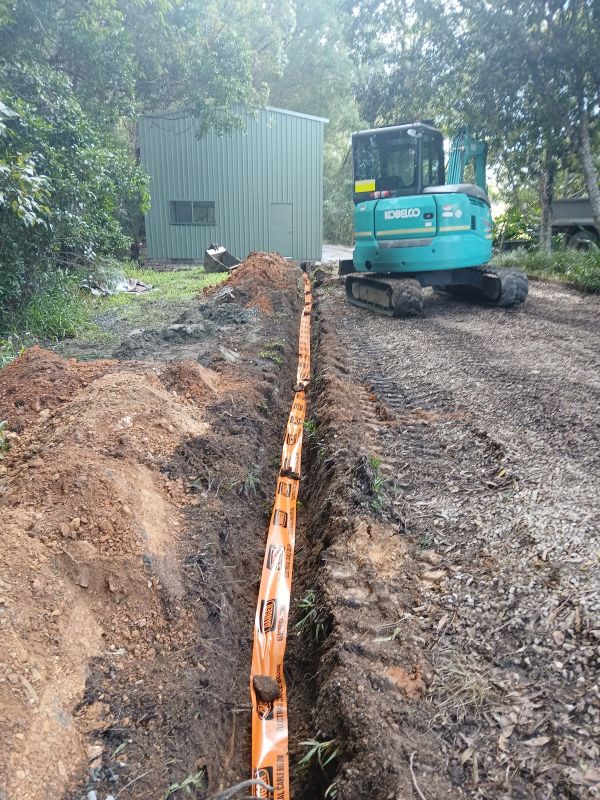

• Underground cable run — This is the most common and aesthetically pleasing method. Your electrician will secure robust cable through orange conduit buried at least 500mm deep, or deeper in areas where heavy vehicles frequently traverse. This technique protects the cable from harsh weather, wildlife interference, and falling branches, making it the preferred choice for most properties with significant acreage.
• Overhead cable run — While less common, this option may be necessary in areas with solid rock or challenging terrain for trenching. Overhead runs must adhere to proper clearance heights and require the installation of support poles, which can considerably increase costs.

For the majority of properties in or around Bellingen, Coffs Harbour, and the Mid North Coast, an underground cable run is highly recommended. Your electrician in Bellingen can evaluate your site and suggest the optimal route for the installation.

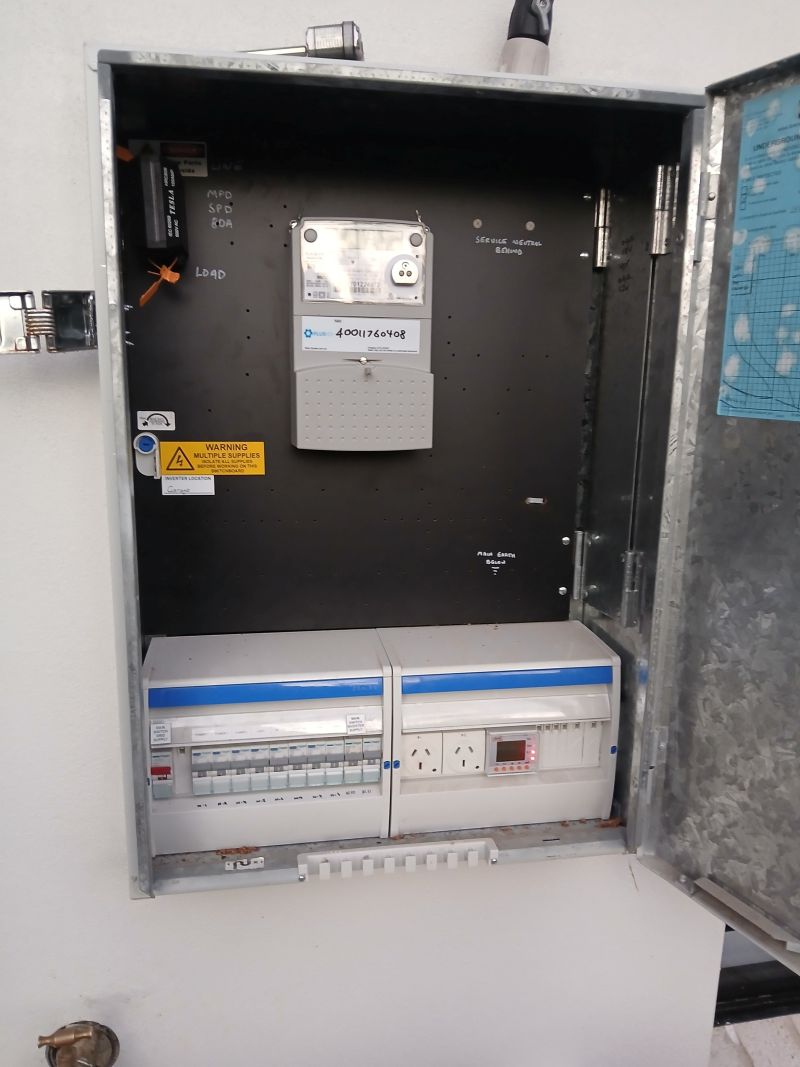

Establishing a Reliable Power Supply for Your Shed: The Importance of a Dedicated Sub-Board

Simply running a single cable to your shed and plugging in appliances is insufficient. For any shed that is equipped with a proper power supply, it must include a dedicated sub-board, often referred to as a distribution board. This device functions as a mini switchboard within the shed, effectively managing all circuits to ensure safety and efficiency.

Your sub-board typically consists of the following essential components:

• Main switch — This component allows you to isolate all power to the shed independently from the main house, significantly enhancing safety and control over your electrical supply.
• RCDs (Residual Current Devices) — These devices, mandated by NSW electrical regulations, provide rapid power cut-off in mere milliseconds in the event of a fault. This feature is crucial for safety in a shed environment where moisture, dust, and damaged leads are commonplace.
• Circuit breakers — These devices serve to offer individual protection for each circuit within the shed, covering lighting, general power, and dedicated tool circuits, ensuring the safety of your equipment.

If your home’s switchboard is outdated, your electrician may also suggest upgrading it to accommodate the additional load directed to the shed effectively, ensuring optimal performance.

What Key Features Should Be Installed Inside Your Shed for Maximum Functionality?

The specific installations that your electrician implements inside the shed will depend entirely on its intended purpose and use. Here’s an overview of typical setups for various applications, ensuring you get the most out of your space.

Creating an Efficient Basic Storage Shed Setup

If your shed primarily functions as a storage area for tools, a ride-on mower, or other equipment, consider the following setup to maximise space and efficiency:

• LED batten lights — One or two ceiling-mounted LED batten lights will effectively illuminate the entire area. Your electrician can provide expert recommendations on the best lighting arrangement based on the shed's dimensions and layout.
• Two to four general power points — These will be adequate for plugging in a charger, a radio, or a drop saw when needed. Expect standard power points and switches to operate on a single circuit, ensuring ease of use.
• External light — A weatherproof LED light positioned above the door will ensure visibility, helping you avoid fumbling around in the dark when entering or exiting the shed.

Designing a Fully Equipped Powered Workshop Shed

If you regularly use power tools such as drop saws, bench grinders, and dust extractors, a more advanced wiring configuration becomes essential to manage power efficiently:

• Multiple circuits — Having separate circuits for lighting, general power, and dedicated tool outlets will prevent flickering lights whenever a tool is activated, ensuring a smoother and more efficient workflow.
• Higher-rated power points — Providing 15-amp or 20-amp outlets is crucial for accommodating heavier tools that require more power to operate effectively without compromising safety.

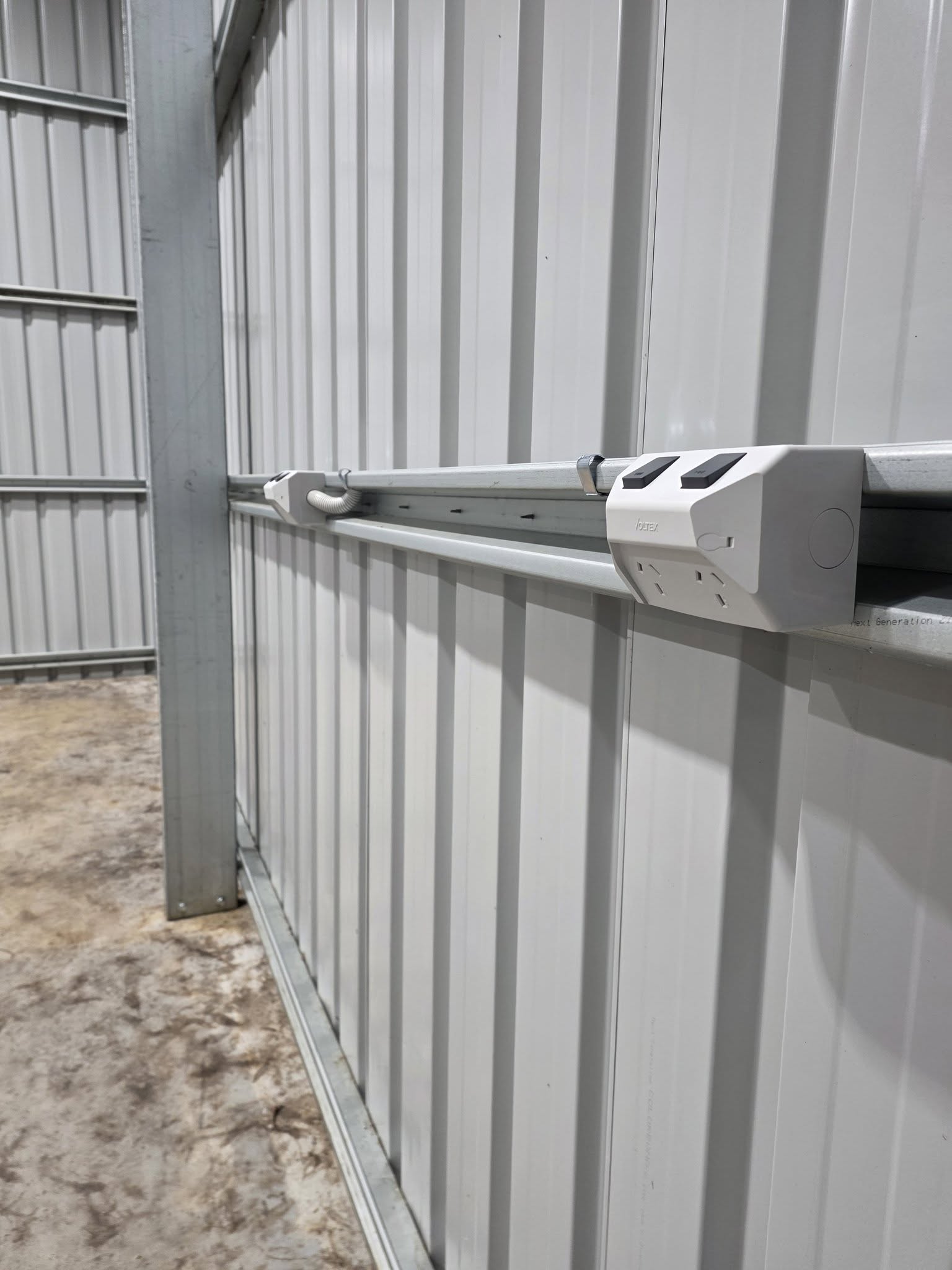

• Strategically placed additional power points — Install outlets at bench height rather than merely at skirting level, taking into account the actual locations of your workbenches to enhance efficiency and convenience.

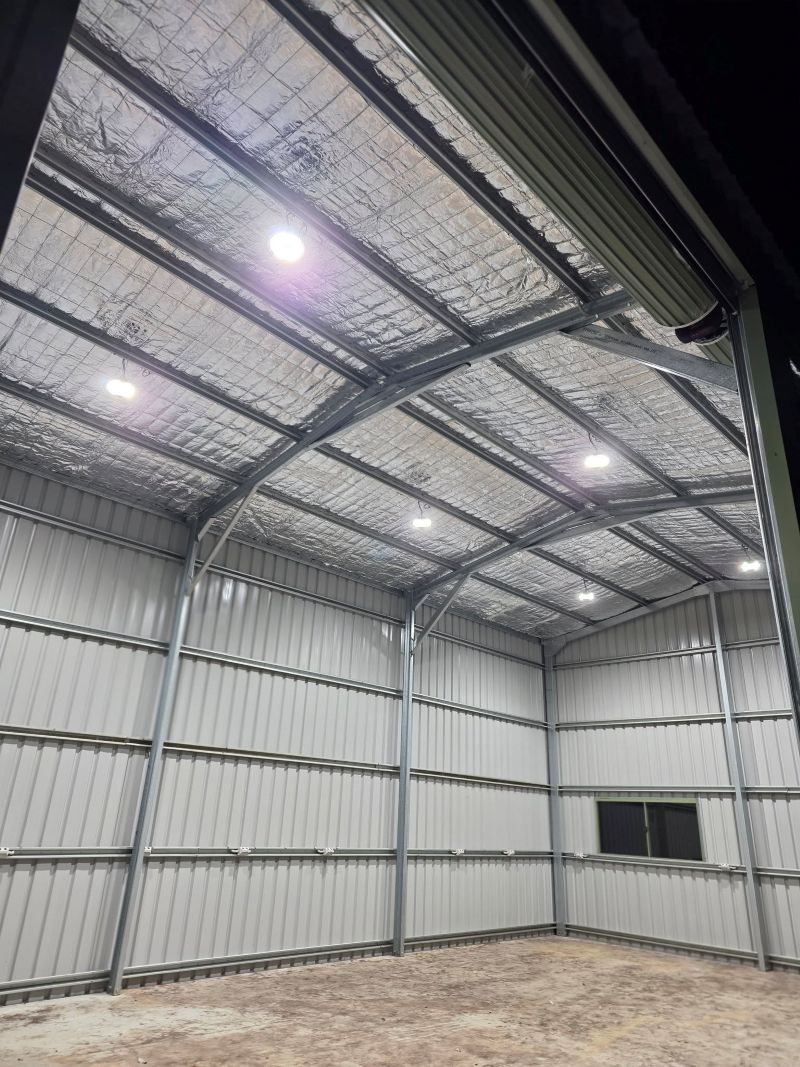

• Dedicated lighting — Ensure brighter, more focused lighting is installed over work areas. Consider using LED high-bays for larger sheds to significantly improve visibility during detailed tasks.

For comprehensive guidance on configuring dedicated circuits for heavy tools, refer to our article, Powering a Rural Workshop — Dedicated Circuits for Heavy Tools and Equipment.

Establishing a Comprehensive Workshop With a Three-Phase Power Supply

If you plan on operating heavy-duty machinery, such as large compressors, lathes, MIG welders, or commercial-grade equipment, relying on single-phase power may not suffice. In such cases, considering three-phase power is advisable for a more reliable power supply.

Three-phase power offers more consistent and higher-capacity energy. Your electrician will need to:

• Arrange for a three-phase supply from your energy distributor, which may take several weeks on the Mid North Coast, so planning ahead is essential.
• Install a three-phase sub-board in the shed, equipped with appropriate breakers and RCDs to ensure compliance and safety during operation.
• Run heavier cabling — It is important to note that three-phase cable runs are generally more costly, especially over long distances, so budgeting accordingly is advisable.
• Install three-phase outlets — These industrial-grade sockets must be rated for the equipment being utilised to ensure safety and efficiency during operation.

If you are unsure whether three-phase power is necessary for your requirements, check out our article, Do I Need Three-Phase Power on My Property? This resource elaborates on when it is beneficial and when a well-designed single-phase setup will suffice. We also provide complete installations for three-phase switchboards should you choose that route.

Why Is Surge Protection Essential for Your Shed's Safety?

Properties located on acreage in the Mid North Coast frequently experience severe lightning storms. A direct or nearby strike can inflict extensive damage to everything housed within your shed, jeopardising tools, chargers, refrigerators, and all equipment connected to power, leading to costly repairs or replacements.

Installing a high-quality surge protection device within the sub-board acts as an affordable form of insurance. This device absorbs voltage spikes before they reach your valuable equipment. For sheds housing expensive tools or a workshop setup, surge protection is an absolute necessity to safeguard your investments against unforeseen electrical surges.

If your property utilises a generator for backup power, your electrician can also install a generator changeover switch, enabling the shed (and the house) to seamlessly switch to generator power safely during outages, ensuring continuous power supply.

What Are the Regulations Regarding Council Approval and Compliance in NSW?

There are several crucial regulations that you need to be aware of when planning your shed wiring project:

• All electrical work in NSW must be carried out by a licensed electrician. There are no exceptions to this rule. While you may dig the trench yourself to reduce labour costs, all electrical tasks—including cabling, connections, sub-board installation, and more—must be executed by a licensed contractor who will issue a Certificate of Compliance (CCEW) upon completion.
• Depth requirements for underground cables must comply with AS/NZS 3000 (the Wiring Rules). Your electrician will manage this aspect of the installation efficiently to ensure compliance and safety, giving you peace of mind.
• If the shed is newly constructed, development approval may be required depending on your council regulations and the dimensions of the shed. While the electrical work itself does not necessitate a separate permit, the overall building project may require approval.

Hack-It Electrical Solutions operates under NSW Electrical Contractor Licence #230609C. Every job we complete comes with a compliance certificate to ensure safety and legality, giving you confidence in our services.

Estimating Costs for Shed Wiring on Acreage: What to Expect

Each shed presents unique challenges—distance from the house, the requirement for single-phase or three-phase power, the number of circuits needed, and soil conditions for trenching all contribute to the overall costs. Here’s a rough guide for the Mid North Coast region:

• Basic shed wiring (light + a few power points, short cable run) — Starting from $2,500, this option offers a straightforward setup for minimal requirements.
• Powered workshop shed with sub-board and multiple circuits — Starting from $4,500, this configuration allows for more extensive power needs.
• Full workshop setup with three-phase, dedicated circuits, and surge protection — Starting from $8,000+, this investment ensures maximum efficiency and safety.

Longer cable runs (50m+), rocky terrain necessitating a rock saw, or upgrades for three-phase supply will all increase the total cost. The most reliable method to receive an accurate estimate is to have your electrician conduct a site visit, evaluate the cable route, and understand the intended use of the shed.

For a customised quote tailored to your specific setup, please call us at 0402 079 803 or contact us here.

Addressing Your Most Common Questions About Shed Wiring

Can I Wire My Shed Myself in NSW?

No, all electrical work in NSW must be performed by a licensed electrician. This includes running cables to the shed, installing the sub-board, power points, lighting, and all other tasks. Attempting DIY electrical work is not only illegal but also poses significant dangers. Your electrician will provide a Certificate of Compliance upon completion of the work, ensuring it meets legal standards and safety requirements.

How Deep Should Underground Cable Be Buried?

According to the Australian Wiring Rules (AS/NZS 3000), underground cables within conduit must be buried at least 500mm deep under standard conditions. If vehicles are likely to drive over the cable run, the depth typically needs to be increased to 600mm or more. Your electrician will determine the appropriate depth for your specific property, ensuring compliance with safety regulations and avoiding potential hazards.

Do I Need a Separate Meter for My Shed?

In most situations, no. The sub-board in your shed connects back to your main house switchboard and draws power from the same meter. A separate meter is only necessary if the shed is utilised as a distinct dwelling or commercial premises, which will require further discussions with your council and your energy distributor to ensure compliance.

How Long Does It Take to Wire a Shed on Acreage?

A typical shed wiring project—comprising trenching, cable installation, sub-board setup, lights, and power points—generally takes one to two days to complete once the trench is prepared. If you are digging the trench yourself, your electrician can provide you with the specific route and depth prior to commencing work. Three-phase installations often take longer, as the supply connection must first be arranged with the distributor before installation can begin.

Can I Run Power From the Shed to Other Buildings?

Yes, it is feasible; however, each additional building will require its own appropriately rated cable run and may need its own sub-board based on electrical load. Your electrician can design the entire layout across multiple buildings, ensuring that the cabling and switchboard capacity are sufficient from the outset, rather than making subsequent additions that could lead to complications and potential safety issues.

Ensure Safe and Efficient Wiring for Your Shed

If you reside on acreage around Bellingen, Coffs Harbour, Sawtell, Boambee, or anywhere on the Mid North Coast, Hack-It Electrical Solutions is committed to ensuring your shed is wired correctly—whether it comprises a simple light-and-power setup or an extensive three-phase workshop configuration.

Contact us at 0402 079 803 or reach out via our website to schedule a site visit. We will assess your property, identify the most suitable cable route, and provide you with a clear, comprehensive quote tailored to your specific needs.
